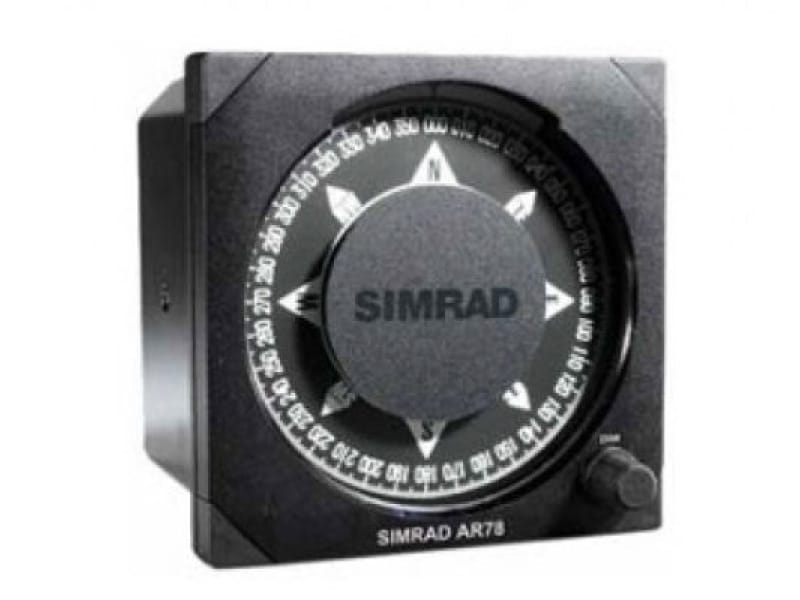

Simrad AR78 OEM Analogue Dial Compass Repeater
Designed to display vessel heading with a ±0.1° accuracy, it features a 118mm analogue dial, graduated in 1° increments, ensuring precise and clear readability
Notice: This is a legacy OEM product
This product was originally manufactured by Marine Data as an OEM product for Simrad. For a suitable replacement, we recommend the following: MD77HRB or MD77HR both are Large Dual Scale Steering Repeaters.
The Simrad AR80 Analogue Repeater, originally manufactured by Marine Data as an OEM product for Simrad, is a compact and highly accurate heading repeater. Designed to display vessel heading with a ±0.1° accuracy, it features a 118mm analogue dial, graduated in 1° increments, ensuring precise and clear readability. The repeater is housed in a rugged, marine-grade aluminium enclosure, finished in Jet Black (RAL 9005) Fine-Texture Powder Coat, designed to complement other marine navigation equipment.
The AR80 is equipped with automatic heading source prioritisation, displaying either True or Magnetic heading data from connected navigation systems. It automatically detects and prioritises available heading sources, ensuring continuous and reliable heading information. In the event of data loss, the repeater provides an automatic indication, and it will automatically re-detect a previously lost heading source once it becomes available, without requiring a reset.
For enhanced usability, the AR80 includes a rotary encoder with an integrated push-button, allowing for local dimming control of the illuminated dial and an internal self-test function. The repeater supports both panel mounting and optional bracket mounting, making it suitable for a variety of vessel installations, even in confined spaces.
The AR80 Analogue Repeater receives heading data via RS422 serial input, supporting NMEA 0183 (IEC 61162-1) HDT, HDG, and HDM sentences at automatic baud rate detection. It operates on a 24V DC power supply with a 0.75A current draw. A 2.5m screened cable, fitted with a 15-way D-type connector, ensures reliable and efficient connectivity. The compass safe distance is 2 meters.
Features:
- 118mm analogue dial with 1° increments
- ±0.1° display accuracy
- Traditional marine compass card display
- Automatic prioritisation of True or Magnetic heading data
- Automatic indication of data loss and reconnection without reset
- Illuminated dial with local and remote dimming control
- Rotary encoder for brightness control and internal self-test
- NMEA 0183 (IEC 61162-1) input via RS422
- Automatic baud rate detection
- Panel or optional bracket mounting
- IP54-rated rugged aluminium enclosure
- Jet Black (RAL 9005) fine-texture powder-coated finish
- 24V DC, 0.75A operation
- 2.5m screened cable with 15-way D-type connector
