OVERVIEW

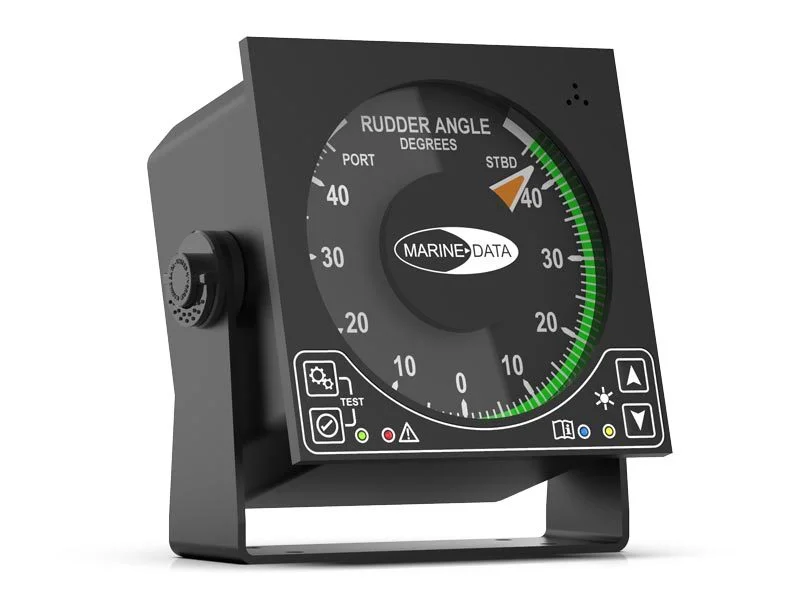

The MD77RDI is a NMEA-based Rudder Angle Indicator, housed in a robust, compact aluminium enclosure. Fitted with touch panel dimmer control for background and pointer illumination.
The MD77RDI provides a clear and easy to read 118 mm diameter analogue display graduated in 1 degree increments from 45 degrees PORT to 45 degrees STARBOARD.
Compact and rugged, the MD77RDI offers a solution for locations where the available space is limited and may be either bulkhead or panel mounted. Finished in Jet Black (RAL9005) Fine-texture Powder Coat to complement other marine navigation equipment.
The MD77RDI from Marine Data: flexible in application, easy to install and simple to maintain.
FEATURES
- Clear and Easily Read Dial Display
- Rudder Angle up to 40°
- Automatic indication of lost valid rudder sensor angle data
- Automatic detection of previously lost heading data with no reset required
- Panel or Bulkhead Mounted
- Accepts NMEA data from a Rudder Angle Transmitter
- Local and Remote Dimming Control
- Supports digital RS422 NMEA 0183
- Wheelmark Approved when installed as part of a Marine Data Rudder Angle Indication System
APPLICATIONS
- External use on a seagoing vessel
- Used to display RSA Rudder Sensor Angle Data transmitted from marine equipment compatible with the NMEA 0183 data protocol
- Two units may be used to display dual rudder positions
ACCESSORIES
- Panel Mounting Kit (Supplied)
- MD77TB – Bulkhead Bracket Mounting Kit
- MD01/PMD – Remote Dimmer Control (0-24 V dc)
RELATED PRODUCTS
- MD61 – Rudder Angle Transmitter
- MD94DDU – Data Distribution Unit
- The complete range of Rudder Angle Indicators from Marine Data
