MD72RDI Panoramic Rudder Angle Indicator
The MD72RDI is a robust and compact, 3-face 250mm panoramic rudder angle indicator, providing clear and easy-to-read analogue displays in 5° increments from 45° Port to 45° Starboard.
Click and swipe to rotate
Overview

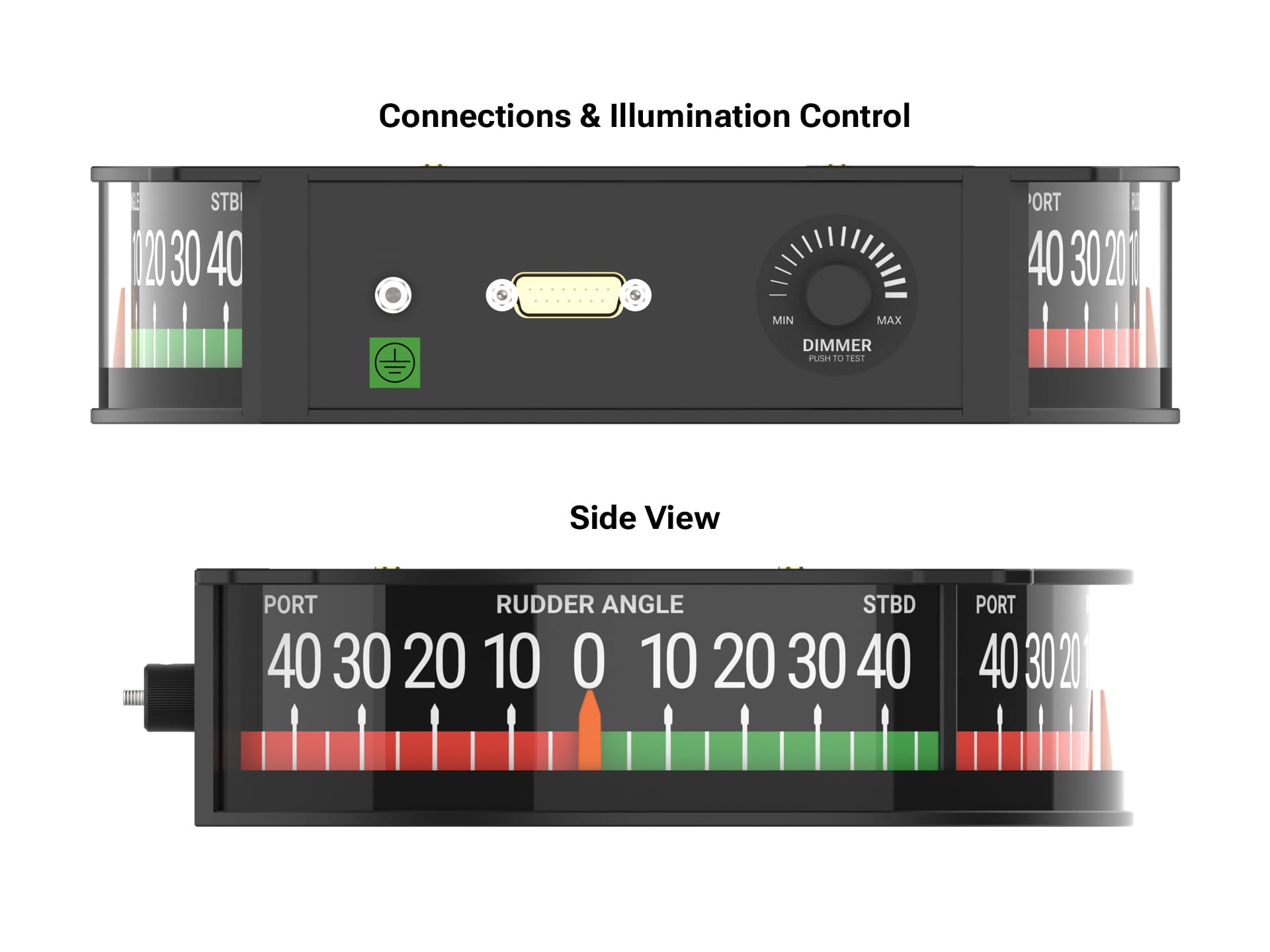

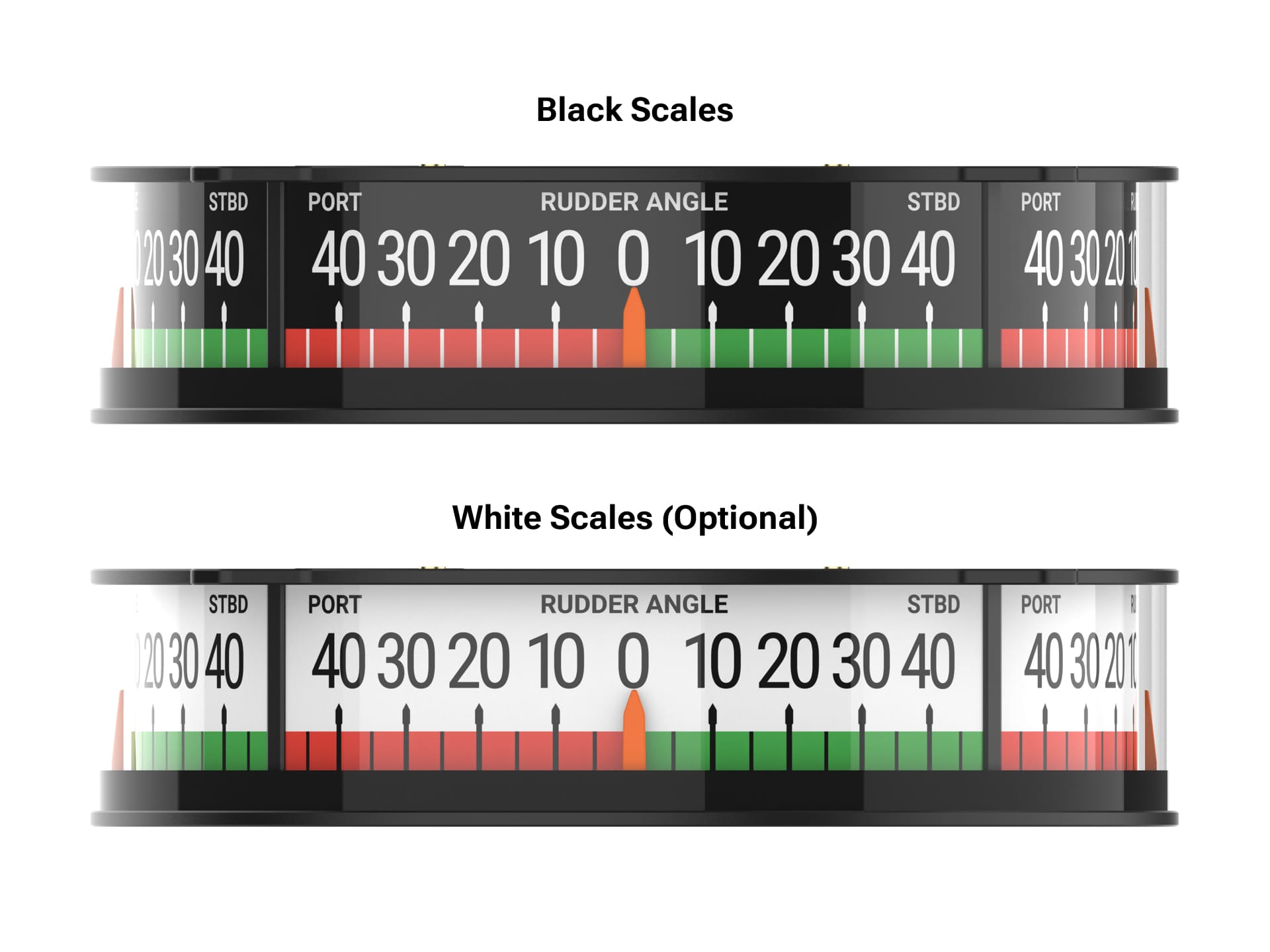

The MD72RDI is a NMEA-compliant, three-window Panoramic Rudder Angle Indicator with a 250 mm diameter, offering a clear and easily readable display of rudder angle from any position on the bridge. Each display window features an analogue scale with 5° graduations, ranging from 45° Port to 45° Starboard. The unit is housed in a durable aluminium alloy enclosure, equipped with a dimmer control on the rear, for adjusting the background and pointer lighting.
Compact and sturdy, the MD72RDI provides an ideal panoramic rudder angle indication solution for spaces where space is limited.

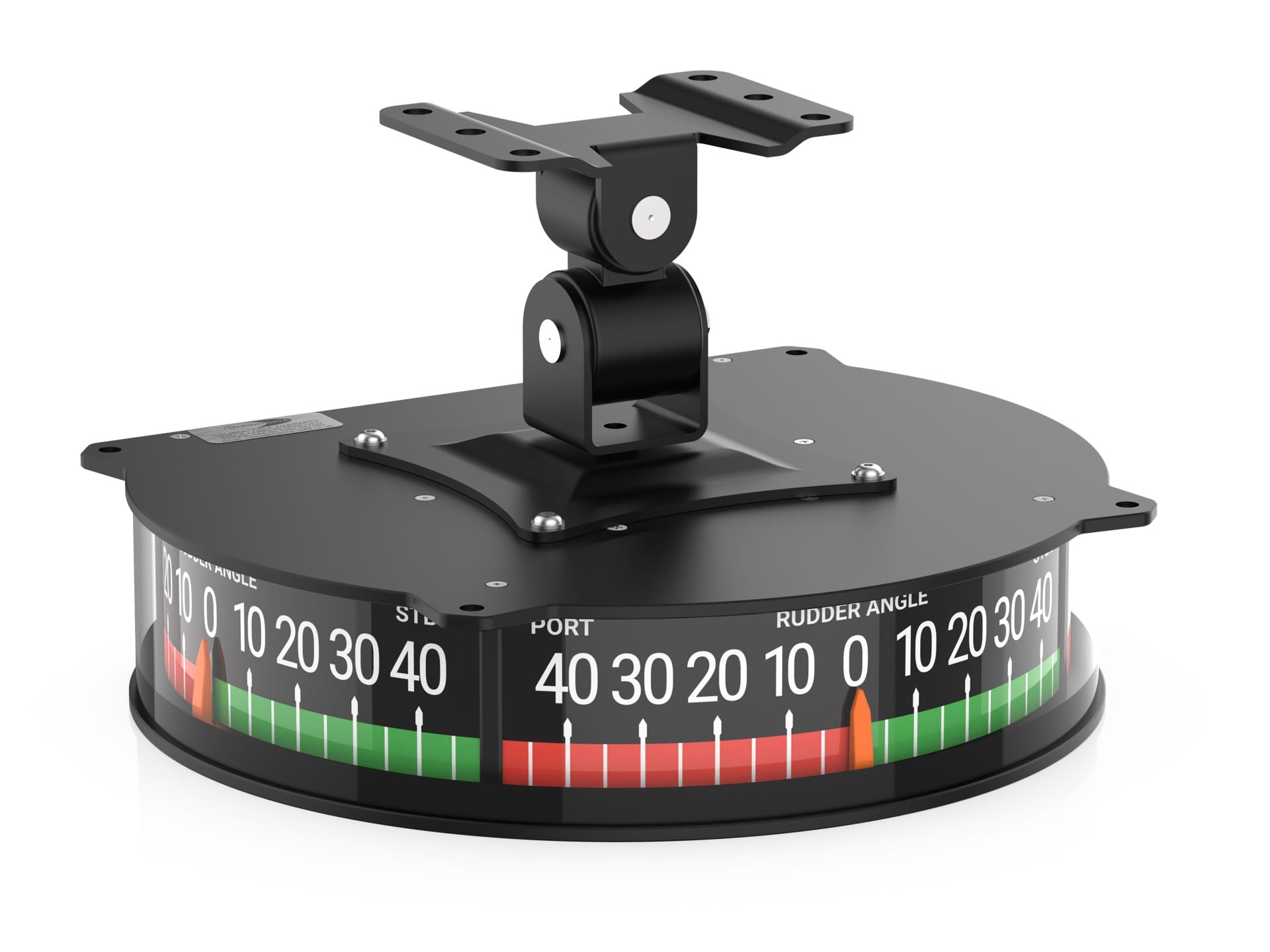

It can be deckhead mounted directly, or with the included VESA bracket for a fine-tuned, angled adjustment, and is finished in a sleek jet-black powder-coat to match other marine navigation equipment.
The MD72RDI: Versatile, easy to install, and simple to maintain.
Special Features
- Large Format 3-Face Analogue Display
- Illuminated Moving Pointers
- Automatic Baud Rate Detection
- Local or Remote Dimming Control
- Accepts Digital NMEA 0183 Data from a Rudder Angle Sensor
- Automatic warning of lost valid rudder sensor angle data
- Automatic detection of previously lost heading data without requiring a reset
- Deckhead VESA Mounting Kit
Applications
- The MD72RDI is designed to display RSA Rudder Angle Sensor Data transmitted from marine equipment compatible with the NMEA 0183 data protocol (for example, the Marine Data MD61 Rudder Angle Sensor Transmitter)
- Two Rudder Angle Indicators may be configured for a vessel equipped with dual rudders in a Rudder Angle System
