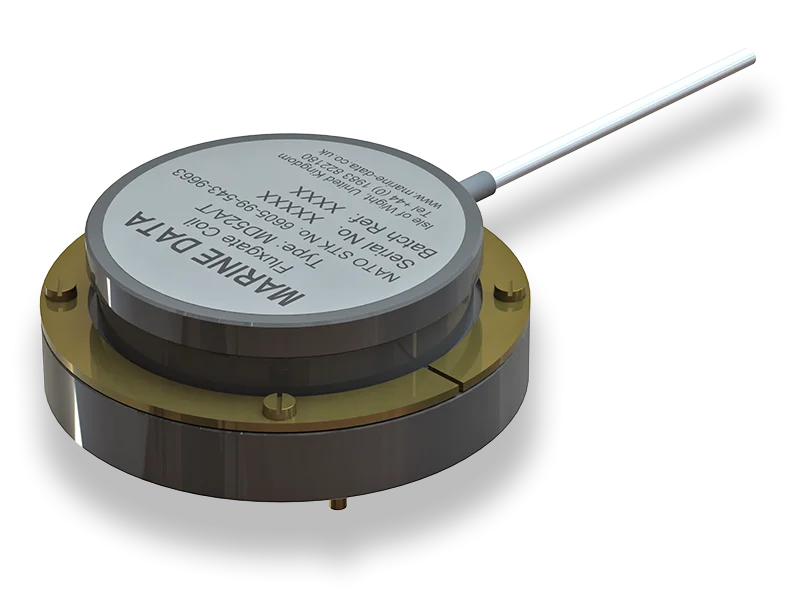

MD52A/B Compass SensorMD52A/B on mounting MD54MD52A/B on mounting MD58Mountings MD54 and MD58 in place on the ship’s compass

MD71TMC TRANSMITTING MAGNETIC COMPASS SYSTEM

MODEL NUMBER: MD71TMC

Accurate magnetic heading from a ship’s magnetic compass is transmitted to a remote heading repeater display over a digital NMEA 0183 connection

SKU: F071100 Categories: ,

Product Description

MAGNETIC TO DIGITAL – OVERVIEW

Increasingly, Maritime Authorities are accepting the use of Transmitting Heading Device (THD) Systems on board vessels. MARINE DATA offers two types of THD system:

  1. A system which senses the angular position of a ship’s magnetic compass card; this is known as a Transmitting Magnetic Compass System (TMC). This type of system provides a digital heading from an existing host magnetic compass installation in its binnacle; it detects the position of the moving compass card
  2. A system which directly senses the Earth’s magnetic field; this is known as an Electro-Magnetic Compass System (EMC). This type of system provides a digital heading directly from the Earth’s magnetic field; it does not require a host magnetic compass; it has no moving parts

The MD71TMC Transmitting Magnetic Compass System

Instead of using inflexible and bulky optical apparatus (reflectors, periscopes etc.) to view the magnetic compass, electronic remote displays may be used in the form of a Compass Repeater. The MARINE DATA MD71TMC is a Transmitting Magnetic Compass (TMC) System which detects and transmits the ship’s Compass Heading over a NMEA 0183 digital connection to one or more Heading Repeaters (Compass Repeaters) at any convenient location on a vessel.

The MARINE DATA™ MD71TMC is a Transmitting Magnetic Compass (TMC) System which uses the latest technology to accurately process and convert the ship’s magnetic compass heading to NMEA 0183 heading data with unparalleled accuracy. TMC systems from MARINE DATA are simple and intuitive to use with quick and easy installation and on-board calibration.

Transmitting Heading Device Systems from MARINE DATA: Flexible in application, easy to install and simple to maintain.

SPECIAL FEATURES

  • Automatic calibration of the Magnetic Sensor Coil with host ship’s magnetic compass by turning the ship through 390°
  • Intuitive menu-driven installer assistance when mounting the Sensor Coil to the ship’s host magnetic compass
  • Dual power supply inputs
  • Bright OLED display provides good clarity with high contrast and wide viewing angles
  • Output: 2x NMEA 0183 data channels

APPLICATIONS

  • Provides a digital NMEA heading output to drive a Heading Repeater (or other devices) at a convenient location
  • An elegant alternative to using an optical reflector in a ship’s magnetic compass installation

RELATED PRODUCTS

  • The full range of MARINE DATA Heading Repeaters

PARTS INCLUDED IN THIS TMC SYSTEM

REQUIRED OPTION: COMPASS SENSOR MOUNTING
(NOT INCLUDED)

  • Optional Sensor Mount MD54 or MD58 – this is not included as standard because it depends on the type of host magnetic compass. Since there are many different manufacturers of magnetic compass,  please contact MARINE DATA to obtain the correct sensor mounting

PRODUCTS FOR EXPANDING THE TMC SYSTEM
(NOT INCLUDED)

**The MD71THD Control and Display Unit is capable of displaying the heading in numeric form as a basic heading repeater (compass repeater). However, we always recommend using a dedicated MARINE DATA Heading Repeater suitable for the precise purpose to which it will be put (a repeater for steering the vessel; a repeater taking bearings; a repeater to be mounted on the bridge wing, etc. See the full range here)

Product Specifications

PHYSICAL

  • Weights & Dimensions: MD71THD: H 96; W 96; D 35 (mm); 5 kg    MD97CSP: L 146; W 64; D 41 (mm); 0.35 kg    MD52A/B: H 18; Ø 69 (mm); 0.12 kg Excludes cables & connectors
  • Mountings: MD71THD: Panel mount supplied as standard; Trunnion mount (MD71TM) optional MD52A/B: MD54 or MD58 mountings direct to compass (depending on compass type)
  • Connections: MD71THD: 15-way D-type plug; 9-way D-type socket; MD52A/B: Buccaneer™ type male MD97CSP: Buccaneer™ type female; 1 gland
  • Finish: RAL9005 Jet Black, fine texture powder coat

ELECTRICAL

  • Power Supply: 24 V dc; 6 W
  • Data Output: 2x NMEA 0183 Data Channels
  • Data sentences: HDT, HDG and HDM

OPERATIONAL

  • Performance: ± 0.1° resolution
  • Display: 7” (128 x 64 pixels); OLED - Yellow
  • Accuracy: <= 0.5° after ADC (depending on sensor)
  • Alarms: Audible sounder

ENVIRONMENTAL

  • IP Rating: MD71THD: IP54 MD97CSP: IP65 MD52A/B:  IP65
  • Operating Temp: -15° C to +55° C
  • Storage Temp: -25° C to +70° C
  • RoHS: Compliant
  • Compass: Safe Distance: (MD71THD & MD97CSP): 50 cm

APPROVALS

  • Complies with: IEC 60945; IEC 61162-1

ADDITIONAL INFORMATION

  • Mounting for MD52A/B: MD54 Compass Sensor Adhesive Mount* SKU F054001
  • Mounting for MD52A/B: MD58 Compass Sensor Bracket Mount* SKU F058001
*Please contact MARINE DATA to determine the correct sensor mount for the ship's compass - this will be supplied with the system
